Low voltage bus bar tube



HSBB 001, a heat shrink insulation tube for bus bar at low voltage, is a thin wall heat shrink tube which provides insulation enhancement and protection against flash-over and accidentally induced discharge Particularly useful in confined spaces in low voltage environments and greatly reduces the noxious and corrosive effects in fire situations. It can be used on both circular and rectangular copper or aluminium bus bars.

Color: black, blue, red, yellow.

Property

Unit

Test Method

Test Value

Shrinking properties

Longitudinal Changes

%

UL 224

0 to -3 %

Eccentricity

%

UL 224

10 to 25 %

Physical properties

Tensile strength

MPa

ASTM D 2671

Min. 11MPa

Elongation

%

ASTM D 2671

Min 400 %

Heat aging

　

ASTM D 2671

　

Tensile strength

　Mpa

158℃ /168 hr

　Min. 12 Mpa

Ultimate Elongation

%

　

Min. 250%

Heat shock

　

UL 224

No cracking, flowing,

250℃ / 4 hrs

dropping

Cold bend test

　

UL 224

No cracking

-30℃ / 1 hrs

Electrical properties

Dielectric strength

kV/mm

IEC 243

32

Volume resistance

Ω.cm

IEC 93

1014

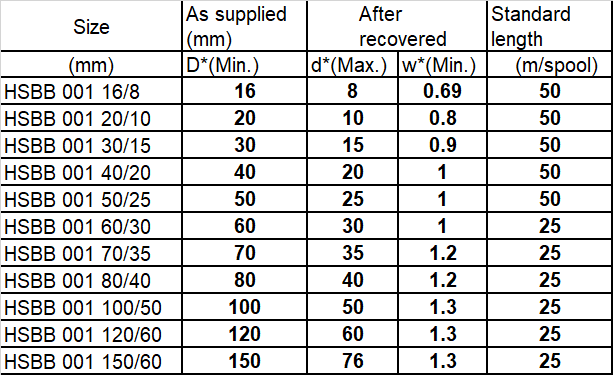

D* = Inner diameter as supplied

d* = Inner diameter after fully recovered
