Dual wall flexible tube

HSDT heat shrinkable dual wall flexible tubing, are made from cross-linked polyolefin and hot melt adhesive. The tubes are highly flexible and flame retardant, and designed for the application where need both insulation and moisture sealing.



Color: black, red, blue, yellow, etc.


Test Items

Test Method

Test Requirements

Tensile strength

ASTM D 2671

10.4MPa minimum

Ultimate elongation

ASTM D 2671

 200% minimum

Tensile strength

UL 224

70% retention minimum

Aging at 158℃ for 168hrs

Ultimate elongation after

UL 224

100% minimum

Aging at 158℃ for 168hrs

Heat shock at 250℃ for 4hrs

UL 224

No dropping & cracking of out jacket

Flammability

UL 224

VW-1(except for clear))

Volume resistance

UL 224

1014Ω.cm minimum

Cold bend at -30℃ for 1hr

ASTM D 2671

No cracking

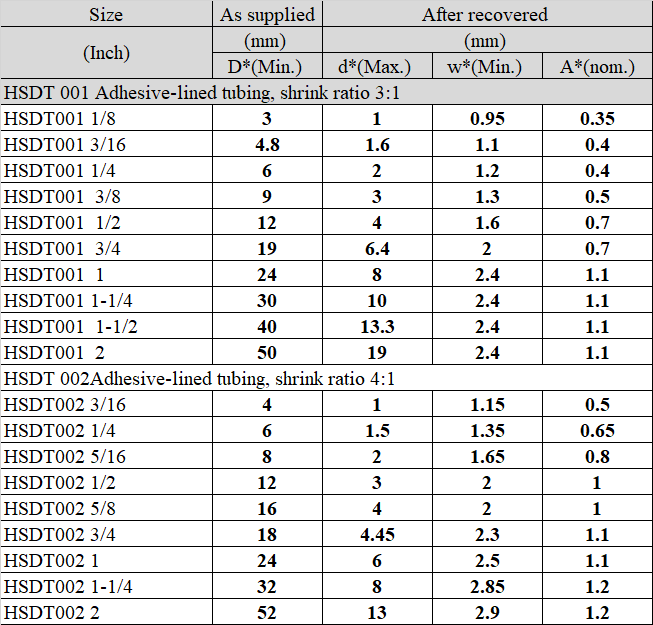

D* = Inner diameter as supplied.
d* = Inner diameter after fully recovered.
 w* = Wall thickness after fully recovered.
A* = Adhesive thickness after fully recovered
